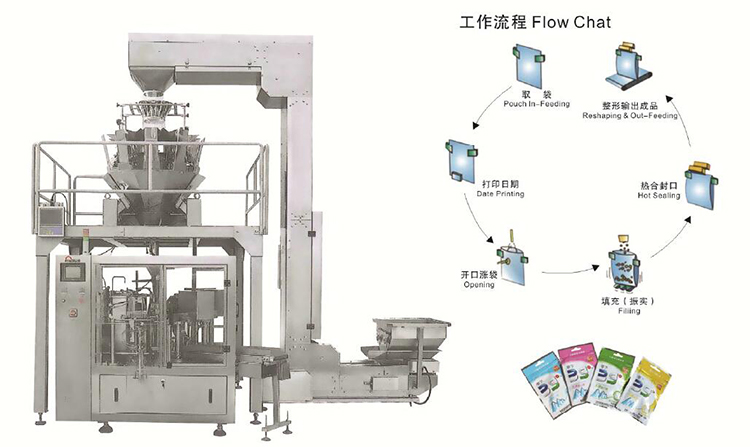

OCL-200MV-GDK8八工位給袋式顆粒自動稱重包裝機 Eight-station bag-feeding granule automatic weighing and packaging machine
全國服務熱線:
159-1595-6886(微信同號)全國服務熱線:
159-1595-6886(微信同號)用途:Application
粉適合糖果、堅果、葡萄幹、花生、葡萄幹、果仁、薯片、巧克力、餅幹、五金件等顆粒的自動計量包裝。
Suitable for candy, hard nut, raisin, peanut, melon seeds, chips, chocolate, biscuit, hardwards and Other stOI dsautOmatjcweighing packages.
適合袋型:Pouch 5tyie
自立袋、手提袋、拉鏈袋、四邊封袋、三邊封袋、紙袋、M折邊袋或其它複合袋。
Stand Bag。Hand Bag,Zipper Bag, Four Side Seal Bag. Three Side Seal Bag,Paper Bag,M Gusset Bag Or Other Larminated Bags
技術參數:Technical Parameter
| 型 號 Madel | OCL-200MV-GDK8 |
| 工 位 數 Station Number | 8Nos |
| 袋子尺寸 BagSize | Lengkh:100-390mm Width:70-220mm |
| 包裝速度 Speed | 25-60 bagslmin |
| 填充範圍 Filling Range | 5-150Dg |
| 包裝精度 Precision | ±1%g |
| 空氣消耗 Air ConsurrEption | <0.4m3/min |
| 功 率 Power | 2.3kw |
| 電 源 Power Supply | 380V/50Hz-60Hz |
| 機 重 Weight | 2500kg |
| 外形尺寸 Dimension | 5700x2000x3600mm |
